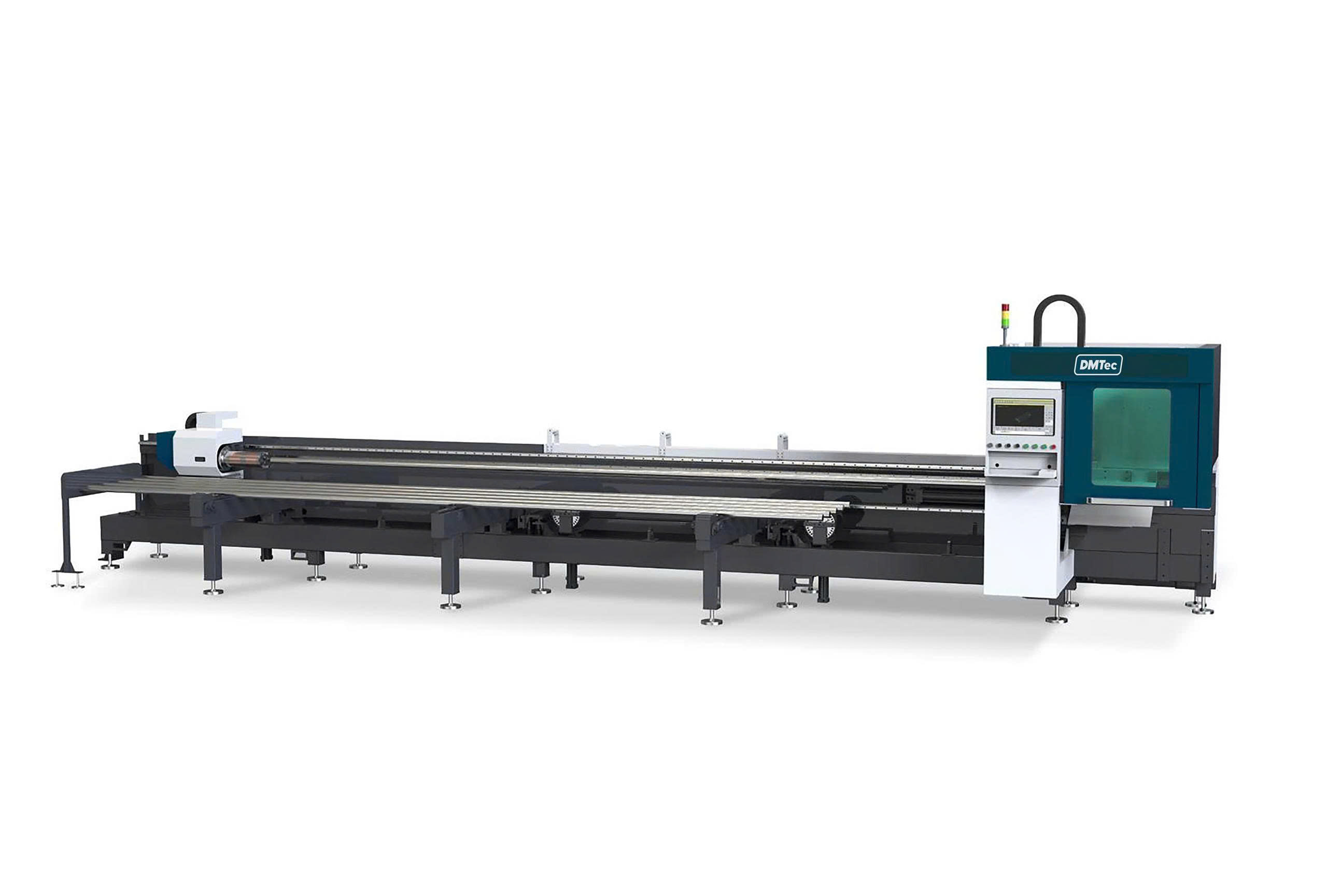

Máy cắt ống DMTec model G120C
Thông tin sản phẩm
Hãng sản xuất:
Năm sản xuất:
Nhà phân phối:
Tình trạng:
Thông Số kỹ thuật
| No | Name | Model / Specs | Brand | Origin | Qty |
|---|---|---|---|---|---|
| 1 | Main machine | ||||
| Main machine of Fiber laser tube cutting machine | G120C (add DMTec sub-logo) | CN | 1 set | ||
| Automatic oil pump | – | – | CN | 1 set | |
| Machine color | Standard | CN | – | ||
| Pneumatic chucks | Precision chucks | BEUT | CN | 2 pcs | |
| Fully-automatic loading device | – | CN | 1 set | ||
| 3.0m floating unloading device | – | CN | 1 set | ||
| Drive system | |||||
| High precision linear ball guides | – | HIWIN | CN | Full set | |
| High precision gear & rack | – | JINGTE | CN | ||
| High precision reducer | – | KOFON | CN | ||
| Servo motors and drivers | – | INOVANCE | CN | ||
| Pneumatic system | |||||
| Pressure reducing valve | – | AIRTAC | CN | Full set | |
| Check valve | – | AIRTAC | CN | ||
| Solenoid valve | – | AIRTAC | CN | ||
| Cylinders | – | AIRTAC | CN | ||
| Pressure switch | – | SMC | CN | ||
| Electric proportional valve | 1 Mpa | SMC | CN | 1 set | |
| Oxygen pressure regulator | – | – | CN | 1 set | |
| Nitrogen pressure regulator | – | – | CN | 1 set | |
| Air filter [HL code 44.10.0002208] | HFS-1 | RAYCEE | CN | 1 pc | |
| Electrical system | |||||
| Electric cabinet (equipped with air-conditioner) | – | – | CN | 1 set | |
| Contactor, air switch, etc. | – | SCHNEIDER / LS | CN | Full set | |
| Optoelectronic switch | – | SCHNEIDER | CN | ||
| Terminal | – | WEIDMULLER | CN | ||
| Tanks chain | – | LONGO | CN | ||
| Capacitive tracking system | |||||
| Capacitive transducer | – | CYPCUT | CN | Full set | |
| Height adjustment module based on BUS communication | – | CYPCUT | CN | ||
| Amplifier | – | CYPCUT | CN | 2 | |
| Laser source | |||||
| Fiber Laser Source 3000W | MFSC-3000 | Maxphotonics | CN | 1 set | |
| 3 | Cutting head | ||||
| Autofocus laser cutting head (Sharp type) | BLT 310T | BOCI | CN | 1 pc | |
| 4 | Control system | ||||
| Computer | Intel Core i5, Memory 8GB, SSD 128GB, Win10, EtherCAT / Ethernet / USB | ||||
| Monitor display | LCD touch display 18.5 inch | – | CN | ||
| Control software | FSCUT3000 | CYPCUT | CN | ||
| Programming Nesting Software | Standard | CYPCUT | CN | ||
| Handheld remote box and signal receiver | – | – | CN | ||
| Wireless network card (WiFi USB) | – | – | CN | ||
| 5 | Auxiliaries equipment | ||||
| Dust Collector 5.5KW | TODC-4B | TOPSINN | CN | 1 set | |
| Stabilizer | 50 KVA | Shenzhen Weibang | CN | 1 set | |
| Water-cooled Chiller | 3000 W | Hanli | CN | 1 set | |
| 6 | Accessories kit | ||||
| Protective lens | – | – | CN | 2 pcs | |
| Nozzles | – | – | 5 pcs | ||
| Ceramic ring | – | – | 2 pcs | ||
| Lens | – | – | 5 pcs |
